Overview - Luggage Compartment Side Trim Panel, A3/A3 SPORTBACK: Notes

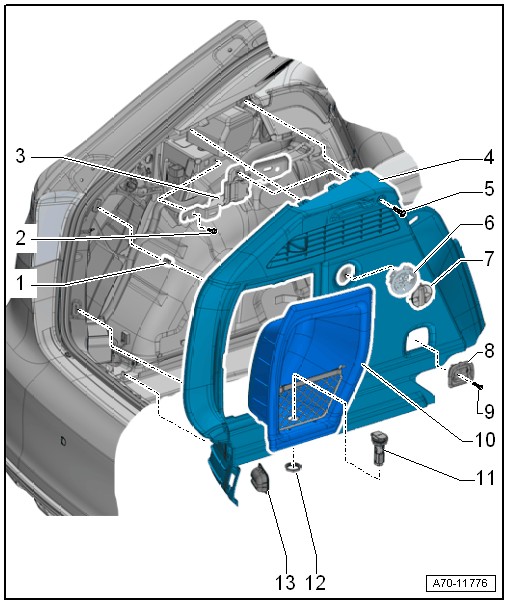

Fig 1: Exploded View Of Luggage Compartment Side Trim Panel, A3/A3 Sportback

Courtesy of AUDI OF AMERICA, LLC

1. Clip
   • Quantity: 4
   • Insert in the trim panel
   • Remove any remaining clips using Omega Clip Tool :T40280  and use them to install the trim.
   • Replace damaged or deformed clips
2. Bolt
   • Quantity: 3
   • Tightening specification and sequence. Refer to BRACKET - TIGHTENING SPECIFICATION AND SEQUENCE .
3. Bracket
   • For the luggage compartment side trim
   • Removing and Installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL BRACKET, REMOVING AND INSTALLING, A3/A3 SPORTBACK .
4. Luggage Compartment Side Trim Panel
   • Removing and Installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, A3/A3 SPORTBACK .
   • Press on until it engages audibly
   • Stretch the lip of the rear lid seal over
5. Bolt
   • 2 Nm
6. Mount
   • For the bag hooks
   • Removing and Installing. Refer to SIDE BAG HOOKS, REMOVING AND INSTALLING .
   • Press on until it engages audibly
7. Bag Hooks
   • Removing and Installing. Refer to SIDE BAG HOOKS, REMOVING AND INSTALLING .
   • Place in the mount and turn clockwise until stop.
8. Tie Down
   • Removing and Installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
9. Bolt
   • 8 Nm
10. Cap
    • For the luggage compartment side trim
11. 12 V Socket -U5-
    • Overview. Refer to OVERVIEW - CIGARETTE LIGHTER, 12 V SOCKET .
12. Nut
    • Tightening specification. Refer to OVERVIEW - CIGARETTE LIGHTER, 12 V SOCKETCigarette Lighter and Socket .
13. Cover
    • For the eyelet
    • Unclip using the Trim Removal Wedge :3409
    • Press on until it engages audibly
