Lock Carrier Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the luggage compartment liner.
-- Remove the rear lid seal -2- near the rear lid end panel trim panel.

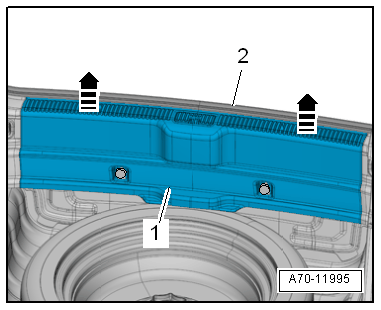

-- Unclip the lock carrier trim panel -1- vertically upward using the :80 - 200
-arrows-.
