Side Bag Hooks, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

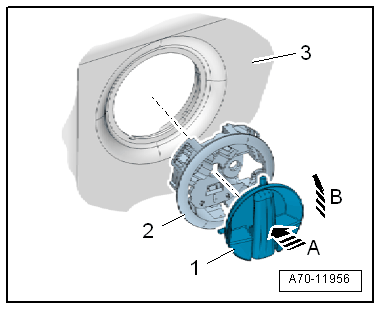

GWWA70-11956Courtesy of AUDI OF AMERICA, LLC

-- Push the bag hook -1- into the bag hook mount -arrow A-.

-- Turn the bag hook all the way counter-clockwise -arrow B- and remove it.

-- Pry the mount -2- for the bag hooks out of the luggage compartment side trim panel -3- using the :3409  or a screwdriver.
