Speaker Trim, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
CAUTION:
There is a risk of damaging the speaker trim.
- Proceed very carefully when removing and installing.

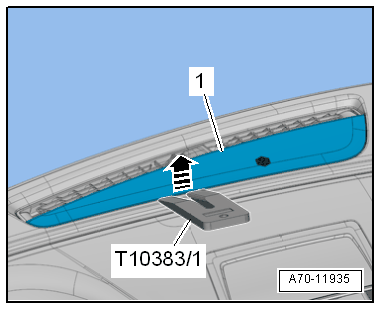

-- Carefully detach the speaker trim -1- clips using the :T10383/1 along the seam -arrow-, to do this push the wedge approximately 2 mm in the seam under the speaker trim.
-- Insert a long screwdriver under the speaker trim at the front, and detach the front clips.
