MMI Screen Cover, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
Courtesy of AUDI OF AMERICA, LLC
|

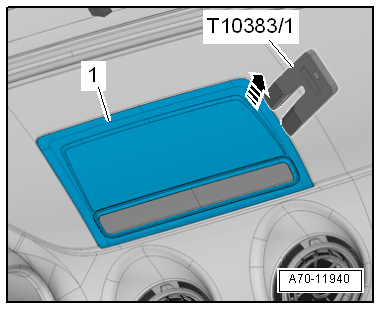

-- Carefully detach the cover -1- using the :T10383/1
along the seam -arrow-, to do this push the wedge approximately 2 mm in the seam under the speaker trim.
