Instrument Panel Vent, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

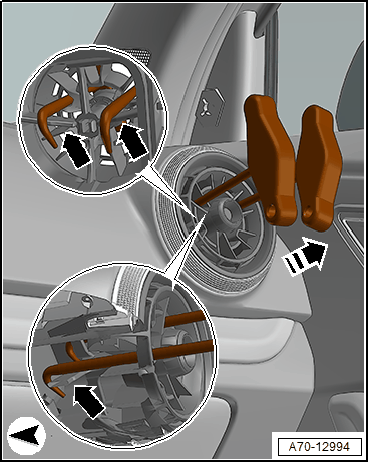

GWWA70-12994Courtesy of AUDI OF AMERICA, LLC

-- Guide the left and right Hooks carefully between the slats and hook the center crossbrace -arrows in magnified area-.

-- At the same time, carefully remove the vent from the installation opening -arrow-.
