Instrument Panel Vent, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install In Reverse Order Of Removal And Note The Following:
-- Turn control ring -1- right -α- = 45° from vertical.

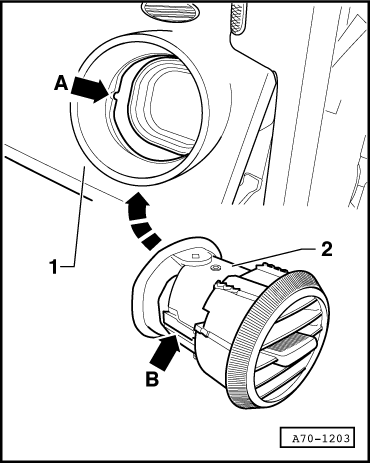

-- Push the instrument panel vent -2- until stop in the instrument panel -1- -arrow-.
- The guide -arrow B- must engage in the cut-out -arrow A-.
-- Check the noise. For this tun the operating cable to the stops.
