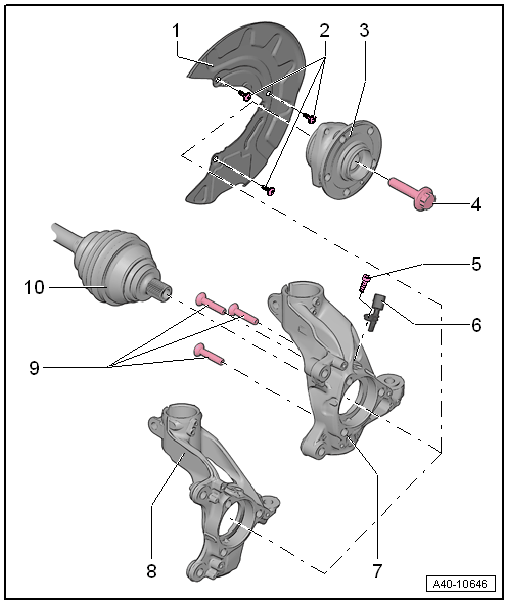

Overview - Wheel Bearing
WARNING: This page is about a different variant/trim than selected.
- Brake Shield
- Removing and installing. Refer to OVERVIEW - FRONT BRAKES / BRAKE SHIELD, REMOVING AND INSTALLING
- Bolts
- For the tightening specification. Refer to OVERVIEW - FRONT BRAKES
- Wheel Bearing Unit
- Removing and Installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
- Lateral run-out in the installed position of a maximum 0.02 mm is permitted
- Measure the lateral run-out with the Dial Indicator - 0-10mm :VAS6079 and Dial Indicator Bracket :VAS6079/1
- Cannot be servicedCAUTION:
- When lifting and setting down/storing, avoid contaminating with dirt and damaging the seal. Refer to REMOVING .
- Bolt
- 200 Nm + 180° . Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .
- Always replace if removed
- Before installing, clean the threads in the CV joint with a tap
- Bolt
- Tightening specification. Refer to OVERVIEW - FRONT AXLE SPEED SENSOR / RIGHT/LEFT FRONT ABS WHEEL SPEED SENSOR -G45- / -G47-, REMOVING AND INSTALLING
- Speed Sensor
- Right Front ABS Wheel Speed Sensor -G45-, Left Front ABS Wheel Speed Sensor -G47-
- Removing and installing. Refer to OVERVIEW - FRONT AXLE SPEED SENSOR / RIGHT/LEFT FRONT ABS WHEEL SPEED SENSOR -G45- / -G47-, REMOVING AND INSTALLING .
- Wheel Bearing Housing
- Depending on the model there are different versions. Refer to the parts information
- Removing and installing. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING .
- Wheel Bearing Housing
- Depending on the model there are different versions. Refer to the parts information
- Removing and installing. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING .
- Bolt
- 70 Nm + 90°
- Always replace if removed
- Drive Axle
- Do not let the drive axle hang down. The inner joint could be damaged if it is bent too far
- Lightly coat the splines on the outer joint with assembly paste before installing the outer joint in the wheel hub. Refer to the parts information
