Special Tools

Courtesy of AUDI OF AMERICA, LLC

Special Tools And Workshop Equipment Required

• Press Plate :VW401
• Press Plate :VW402
• Press Piece - Rod :VW408A
• Press Piece - Rod :VW411
• Press Piece - 37mm :VW416B
• Press Piece - Multiple Use :VW447H

Courtesy of AUDI OF AMERICA, LLC

Special Tools And Workshop Equipment Required

• Hose Clip Pliers :VAG1275A
• Torque Wrench 1331 5-50 Nm :VAG1331
• Torque Wrench 1332 40-200 Nm :VAG1332
• Clamping Pliers :VAG1682A
• Tripod Joint Tool :T10065

Fig 1: Identifying Special Tools (Circlip Pliers VW161A)

Courtesy of AUDI OF AMERICA, LLC

Special Tools And Workshop Equipment Required

• Circlip Pliers :VW161A
• Torque Wrench 1331 5-50 Nm :VAG1331
• Torque Wrench 1332 40-200Nm :VAG1332
• Clamping Pliers :VAG1682A
• Tripod Joint Tool :T10065

Special Tools And Workshop Equipment Required

• Shock Absorber Set :T10001

  Courtesy of AUDI OF AMERICA, LLC

• Tensioning Strap :T10038

  Courtesy of AUDI OF AMERICA, LLC

• Tripod Joint Tool :T10065

  Courtesy of AUDI OF AMERICA, LLC

• Engine/Gearbox Jack Adapter - Wheel Hub Support :T10149

  Courtesy of AUDI OF AMERICA, LLC

• Bearing Installer - Wheel Hub/Bearing Kit - 4 :T10205/4  from Bearing Installer - Wheel Hub/Bearing Kit :T10205A

  Courtesy of AUDI OF AMERICA, LLC

• Wishbone Rubber Mount Assembly Tool-Drift :T10219/2

  Courtesy of AUDI OF AMERICA, LLC

• Seal Installer - Bevel Box :T10243

  Courtesy of AUDI OF AMERICA, LLC

• Socket AF 24 mm :T10361A

  Courtesy of AUDI OF AMERICA, LLC

• Puller - Driveshaft :T10382

  Courtesy of AUDI OF AMERICA, LLC

• Assembly Tool, Subframe Alignment :T10486A  or Locating Pins :T10486/1

  Courtesy of AUDI OF AMERICA, LLC

• High Pressure Pump Shaft Holder :T40295

  Courtesy of AUDI OF AMERICA, LLC

• Torque Wrench 1332 Insert - Ring Wrench - 21mm :VAG1332/7

  Courtesy of AUDI OF AMERICA, LLC

• Torque Wrench 1332 Insert - Ring Wrench - 18mm :VAG1332/10

  Courtesy of AUDI OF AMERICA, LLC

• Spring Compressor Kit :VAG1752

  Courtesy of AUDI OF AMERICA, LLC

• Digital Torque Wrench :VAG1756A

  Courtesy of AUDI OF AMERICA, LLC

• Hydraulic Press :VAS6178

  Courtesy of AUDI OF AMERICA, LLC

• Pneumatic/Hydraulic Foot Pump :VAS6179

  Courtesy of AUDI OF AMERICA, LLC

• Pneumatic Hydraulic Press :VAS6654
• Hydraulic Press - Bushing Tool Kit :VAS6779

  Courtesy of AUDI OF AMERICA, LLC

• Engine and Gearbox Jack :VAS6931

  Courtesy of AUDI OF AMERICA, LLC

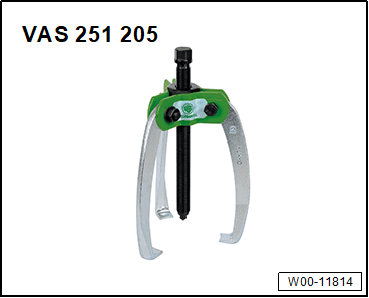

• Three-Arm Puller :VAS251205  (previously Kukko 45-2)

  Courtesy of AUDI OF AMERICA, LLC

• Press Piece - Rod :VW411

  Courtesy of AUDI OF AMERICA, LLC

• Press Piece - Multiple Use :VW412

  Courtesy of AUDI OF AMERICA, LLC

• Bearing Installer - Ball Joint/Bushing/Bearing - Sleeve :VW459/2

  Courtesy of AUDI OF AMERICA, LLC

• CV Joint Press Sleeve :VW522

  Courtesy of AUDI OF AMERICA, LLC

• Slide Hammer Set :VW771

  Courtesy of AUDI OF AMERICA, LLC

• Press Block :40-204A

  Courtesy of AUDI OF AMERICA, LLC

• Puller - Ball Joint :3287A

  Courtesy of AUDI OF AMERICA, LLC

• Spreader Tool :3424

  Courtesy of AUDI OF AMERICA, LLC

• Bearing Installer - Wheel Bearing :3345

  Courtesy of AUDI OF AMERICA, LLC

• Bearing Installer - Multiple Use :3348

  Courtesy of AUDI OF AMERICA, LLC
