SUBFRAME, Servicing, Vehicles With Steel SUBFRAME: Notes
Special Tools And Workshop Equipment Required
- Press Plate :VW401
- Press Piece - Multiple Use :VW412
- Hydraulic Press - Bushing Tool Kit :VAS6779
- Hydraulic Press - Bushing Tool Kit - Thrust Piece :VAS6779/1
- Hydraulic Press - Bushing Tool Kit - Threaded Rod :VAS6779/2
- Hydraulic Press - Bushing Tool Kit - Hexagon Nut :VAS6779/3
- Hydraulic Press - Bushing Tool Kit - Tube :VAS6779/4
- Hydraulic Press - Bushing Tool Kit - Thrust Piece :VAS6779/5
- Hydraulic Press - Bushing Tool Kit - Funnel :VAS6779/6
- Hydraulic Press - Bushing Tool Kit - Counter Hold :VAS6779/7
- Hydraulic Press - Bushing Tool Kit - Incremental Ring :VAS6779/8
- Hydraulic Press - Bushing Tool Kit - Thrust Piece :VAS6779/9
- Hydraulic Press - Bushing Tool Kit - Insert :VAS6779/-1A
- Pneumatic Hydraulic Press :VAS6654
- Bearing Installer - Wheel Hub/Bearing Kit - 4:T10205/4 from Bearing Installer - Wheel Hub/Bearing Kit :T10205A
- Bearing Installer - Wheel Hub/Bearing Kit - Adapter 13 :T10205/13
- Hydraulic Press :VAS6178
- Pneumatic/Hydraulic Foot Pump :VAS6179
Replace the Pendulum Support Bonded Rubber Bushing:
-- Remove the pendulum support. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING [CRUA, DEJA] .
-- Remove the left and right nuts -1- from the coupling rod -3-. Refer to COUPLING ROD, REMOVING AND INSTALLING .
-- Remove the left and right coupling rod -3- from the stabilizer bar -2-.
-- Remove the bolts -2- to remove the stabilizer bar from subframe.
- Leave the stabilizer bar in the installed position on the vehicle.
Pressing Out the Bonded Rubber Bushing:
-- Position the :VAS6779/1 -1- with the flat side -arrow- on the bonded rubber bushing in the driving direction.
- :VAS6779/1
- :VAS6779/4
- :VAS6779/5
- :VAS6178 with :T10205/13
- :VAS6779/3
- :VAS6779/2
-- Press out both bonded rubber bushings until the upper bonded rubber busing -2- is visible through the opening for the pendulum support -arrow- in the subframe.
-- Perform a visual inspection of the upper bonded rubber bushing -2- outer race.
- If the upper bonded rubber bushing -2- outer race is deformed, it must be destroyed through the opening for the pendulum support -arrow- in the subframe.
-- Using a using a chisel or similar tool -1-, make a break in the upper bonded rubber bushing -2- outer race.
This work sequence is necessary to prevent tilting of the bonded rubber bushing outer race in the area of the pendulum support opening in the subframe.
-- Completely press out both bonded rubber bushings at the same time.
Prepare the Bonded Rubber Bushing before Pressing In:

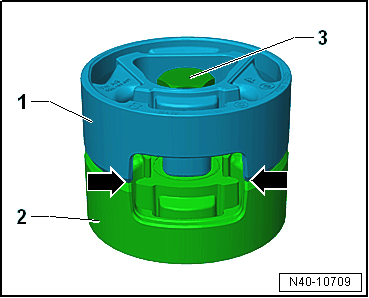

-- Place the bonded rubber bushings -1 and 2- on top of each other, so the openings -arrows- lay exactly over each other.
-- Tighten both bonded rubber bushings with the original bolts -3- hand tight.
-- Place the bonded rubber busing -1- with the bolt head facing up in the larger diameter of the :VAS6779/6 -2-.
-- Align the boded rubber bushing in the :VAS6779/6 .
- The bonded rubber bushing opening -arrows- must exactly lay in the recess on the :VAS6779/6 .
-- Press the bonded rubber bushing -3- in the :VAS6779/6 as shown in the illustration until stop.
- :VW412
- :VAS6779/5 , the side with the letter "A" points up
- Bonded Rubber Bushing
- :VAS6779/6
- :VAS6779/4
- :VW401
-- Insert the :VAS6779/7 -1- in the subframe.
-- Insert the :VAS6779/-1A -2- in the pendulum support opening in the subframe.
-- Bolt the :VAS6779/7-1A on the :VAS6779/7 .
-- Pay attention that the :VAS6779/7-1A -2- is seated correctly in the subframe opening.
