Drive Axle With Triple Roller Joint AAR2600I/AAR3300I, Mounted In Transmission
WARNING: This page is about a different variant/trim than selected.
Filling The Joints With Grease
| Grease - Refer to the parts information | Outer Joint | Inner Joint/Triple Roller Joint |
|---|---|---|
| Total quantity | 120 g | 140 g |
| In joint | 80 g | 70 g |
| In protective joint boot | 40 g | 70 g |

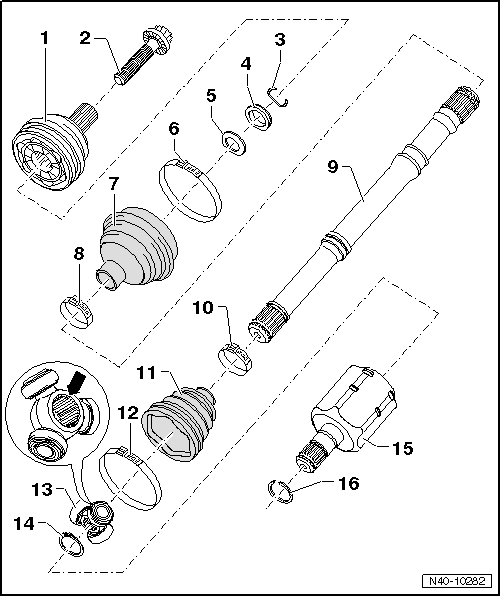

Fig 1: Exploded View Of Drive Axle With Triple Roller Joint (AAR2600I/AAR3300I) Mounted In Transmission
- Outer CV Joint
- Replace only as complete unit
- Removing. Refer to REMOVING THE OUTER CV JOINT
- Installing: Drive onto shaft with plastic mallet until the compressed circlip seats
- Checking. Refer to OUTER CV JOINT, CHECKING .
- Bolt
- 200 Nm + 180° turn
- Always replace if removed
- Loosening and tightening. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .
- Before installing, clean the threads in the CV joint with a tap
- Locking Ring
- Always replace if removed
- Insert in shaft groove
- Thrust Ring
- Not installed on all versions
- Installed position. Refer to the appropriate service information.
- Plate Spring
- Not installed on all versions
- Installed position. Refer to Figure
- Clamp
- Tensioning. Refer to Figure
- Always replace if removed
- CV Boot
- Check for tears and scuffing
- Clamp
- Tensioning. Refer to Figure
- Always replace if removed
- Drive Axle
- Clamp
- Tensioning. Refer to Figure
- Always replace if removed
- CV Boot for Triple Roller Joint
- Check for tears and scuffing
- Clamp
- Tensioning. Refer to Figure
- Always replace if removed
- Triple Roller Star with Rollers
The chamfer -arrow- points to drive axle splines
- Locking Ring
- Always replace if removed
- Insert in shaft groove
- Joint
- Locking Ring
- Always replace if removed
