Drive Axle With Triple Roller Joint AAR 2600I, Bolted
WARNING: This page is about a different variant/trim than selected.
Filling The Joints With Grease
| For the total quantity of grease. Refer to the parts information | Outer Joint |
|---|---|
| 120 g | |
| In joint | 80 g |
| In protective joint boot | 40 g |
| For the total quantity of grease refer to the parts information. | Tripod joint |
| 140 g | |
| In joint | 70 g |
| In protective joint boot | 70 g |
NOTE:
Grease joint again when replacing protective joint boot.

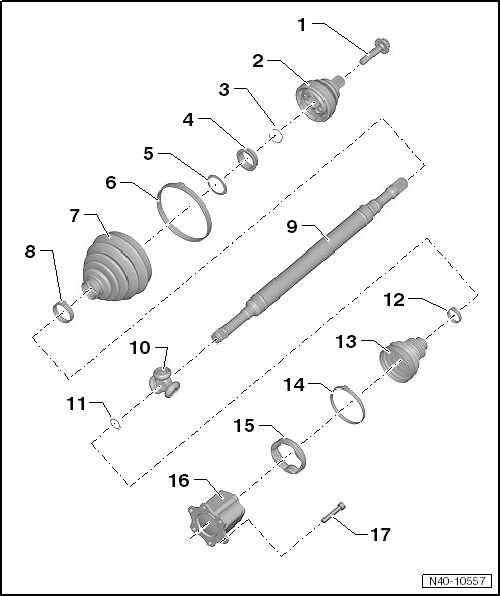

- Bolt
- 200 Nm + 180° turn
- Always replace if removed
- Loosening and tightening. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .
- Before installing, clean the threads in the CV joint with a tap
- Outer CV Joint
- Replace only as complete unit
- Removing. Refer to OUTER CV JOINT, REMOVING
- Installing. Refer to DRIVE AXLE WITH TRIPLE ROLLER JOINT AAR 2600I, SERVICING, BOLTED
- Checking. Refer to OUTER CV JOINT, CHECKING .
- When installing joint on axle shaft, splines on axle shaft must be lightly coated with grease used in joint.
- Locking Ring
- Always replace if removed
- Insert in shaft groove
- Spacer Ring (Plastic)
- Installed position. Refer to Figure
- Spring Plate
- Installed position. Refer to Figure
- Clamp
- Tensioning. Refer to Figure
- Always replace if removed
- CV Boot
- Check for tears and scuffing
- Clamp
- Tensioning. Refer to Figure
- Always replace if removed
- Profile Shaft
- Triple Roller Star with Rollers
- The chamfer -arrow- faces the splines on the drive shaft
- When installing triple roller star on axle shaft, splines on axle shaft must be lightly coated with grease used in joint
- Locking Ring
- Always replace if removed
- Insert in shaft groove
- Clamp
- Tensioning. Refer to Figure
- Always replace if removed
- CV Boot for Triple Roller Joint
- Check for tears and scuffing
- Clamp
- Tensioning. Refer to Figure
- Always replace if removed
- Adapter
- Bolted Joint
- Bolt
- Pre-tightening specification: diagonal sequence to 10 Nm
- M8 tightening specification: diagonal sequence to 40 Nm
- M10 tightening specification: diagonal sequence to 70 Nm
- Always replace if removed
