Wheel Bearing Unit, Removing And Installing, Torsion Beam Axle Vehicles With Front Wheel Drive: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the brake rotor. Refer to REAR BRAKE ROTOR, REMOVING AND INSTALLING .

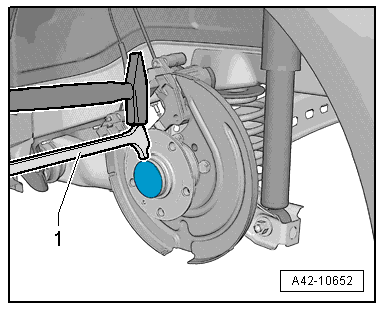

-- Loosen dust cap from seat by tapping lightly on claw of :VW637/2 -1-.

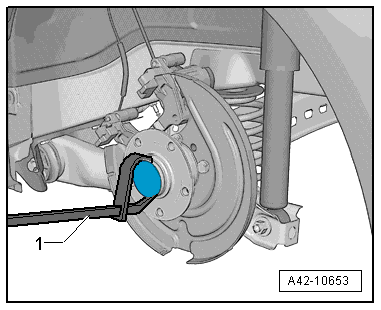

-- Press the dust cap off using the :VW637/2 -1-.
CAUTION:
Never use an impact wrench when loosening the bolt -1- using the :T10162A .
-- Remove the bolt using the :T10162A -2-.
-- Remove the wheel bearing unit from the axle stub.
CAUTION:
- When setting down/storing avoid contaminating with dirt and damaging the seal.
The Wheel Bearing -1- Must Always Face Up.
-- Always set the wheel bearing unit down on the wheel hub -2-.
