Press In The Rear Bonded Rubber Bushing

Courtesy of AUDI OF AMERICA, LLC

• Apply a marking -1- to the new bonded rubber bushing to help mount it.
• At the top of the bonded rubber bushing coat the retainers lightly all around with Installation Lubricant:G 294 421 A1  .

-- Apply a line -1- on the vertical rib of the bonded rubber bushing as illustrated.

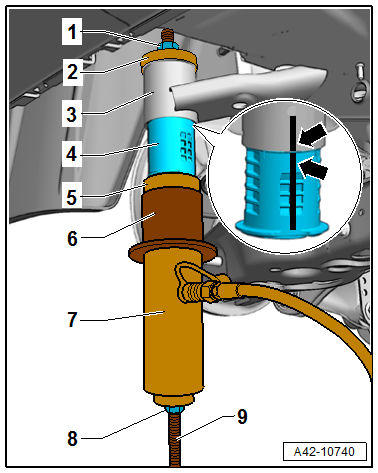

-- Insert special tools with bonded rubber bushing into subframe as illustrated.

Courtesy of AUDI OF AMERICA, LLC

1  - :T10263/5

2  - :T10356/7  , side "B" points to the subframe

3  - Subframe

4  - Align the bonded rubber bushing with the markings made previously -arrows- (the markings need to align).

5  - :T10356/8

6  - :T10356/2

7  - :VAS6178  with :T10205/13

8  - :T10263/5

9  - :T10263/4

-- Check the position of the bonded rubber bushing and, if necessary, align and pre-tighten special tools with bonded rubber bushing.

-- Operate the pump to press in the bonded rubber bushing until the shoulder is positioned on the subframe without gap. While pulling in, make sure the bonded rubber bushing does not cant, otherwise outer ring could be damaged.

Further installation is performed in reverse order of removal, while noting the following:

-- Remove the :T10096  . Refer to SUBFRAME, SECURING .
