SUBFRAME Front Bonded Rubber Bushing, Replacing (Multi-Link Suspension): Notes

WARNING: This page is about a different variant/trim than selected.

Special Tools And Workshop Equipment Required

Torque Wrench 1332 40-200 Nm :VAG1332
Hydraulic Press :VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit - Adapter 13 :T10205/13
Pneumatic/Hydraulic Foot Pump :VAS6179
Tensioning Strap :T10038
Hydraulic Press - Rear Subframe Bushing Tool Kit :T10263
Hydraulic Press - Rear Subframe Bushing Tool Kit - Spindle :T10263/4
Hydraulic Press - Rear Subframe Bushing Tool Kit - Nut :T10263/5
Subframe Bushing Assembly Tool Kit :T10356
Subframe Bushing Assembly Tool Kit - Press Piece :T10356/1
Subframe Bushing Assembly Tool Kit - Tube :T10356/2
Assembly Tool - Bushing :T10356/7
Subframe Bushing Assembly Tool Kit - Press Piece :T10356/8
Installation Lubricant :G 294 421 A1 . Refer to the parts information.

CAUTION:

This procedure contains mandatory replaceable parts. Refer to component overview and parts information prior to starting procedure.

Mandatory Replacement Parts

Bolts - Bonded Rubber Bushing to Subframe

NOTE:

If a bonded rubber bushing is faulty, then the bonded rubber bushing on the opposite side must also be replaced. For the correct allocation. Refer to the parts information.

Check the other bushings before replacing a faulty bonded rubber bushing.

If there are any tears or other visible damages, replace the bonded rubber bushing.

Identify mounting location to subframe before removing the bonded rubber bushing.

Pressing Out Bonded Rubber Bushing, Front:

-- Secure the subframe. Refer to SUBFRAME, SECURING .

-- If equipped, remove the underbody panels. Refer to OVERVIEW - UNDERBODY TRIM PANELS / UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .

AWD Vehicles:

-- Check for a factory-applied marking (colored dot) on the joint washer and all wheel drive clutch flange -arrows-. If there is not one, mark the location of the joint washer and the all wheel drive clutch flange to each other -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove rear driveshaft tube from rear final drive with joint washer and vibration damper -arrows-. Refer to the appropriate service information. .

Courtesy of AUDI OF AMERICA, LLC

-- Support the driveshaft -A- on the tunnel brace -1- with a wooden block and if necessary re-install the tunnel brace.

Courtesy of AUDI OF AMERICA, LLC

-- Move rear driveshaft tube as far as possible in direction of transmission.

Continuation for All Vehicles:

-- Remove tie rods. Refer to TIE ROD, REMOVING AND INSTALLING .

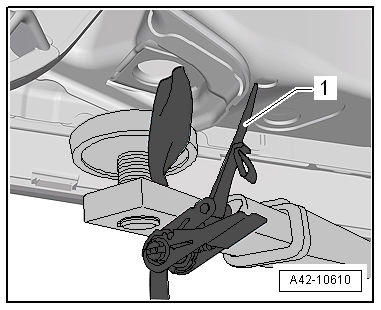

-- Secure both sides of the vehicle on the hoist arms using :T10038 -1-.

Courtesy of AUDI OF AMERICA, LLC

WARNING:

The vehicle could slide off the hoist if it is not secured.

-- Unclip the brake line on the left side -arrows-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The clips will get damaged while doing this and will have to be replaced.

-- Carefully lower the subframe with its components approximately. 40 mm.

NOTE:

When lowering, make sure there is enough clearance between the brake lines, electrical lines and centering pins to the driveshaft.

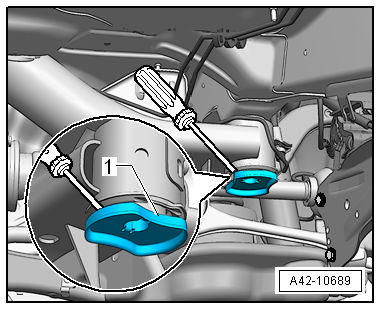

-- Pry the anti-twist mechanism -1- near the tabs off the bonded rubber bushing.

Courtesy of AUDI OF AMERICA, LLC

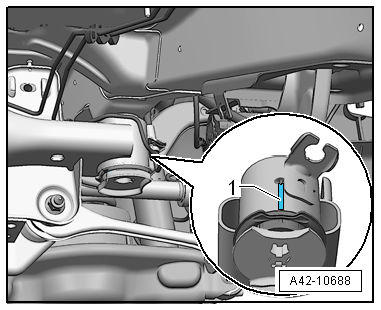

-- Mark the installation location of the bonded rubber bushing on the subframe with a felt-tip pen -1-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Apply the mark -1- on the subframe in the middle of the recess on the bonded rubber mounting.

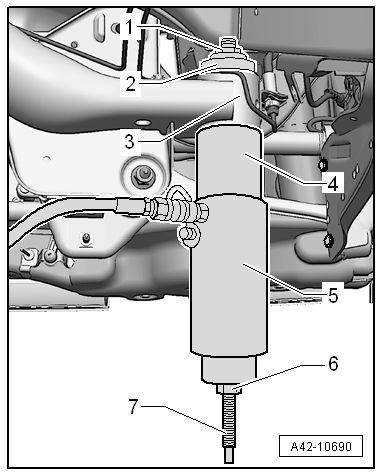

-- Mount the tools as illustrated.

Courtesy of AUDI OF AMERICA, LLC

1 - :T10263/5

2 - :T10356/1

3 - Subframe

4 - :T10356/2 , side with shoulder points to subframe

5 - :VAS6178 with :T10205/13

6 - :T10263/5

7 - :T10263/4

-- Pretension Special Tools.

-- Press out the bonded rubber mount.

NOTE:

When removing the bonded rubber mounting, the bearing outer race is shorn off. There is a loud crack when this happens.

After removing the bonded rubber bushing, it must be removed from the :T10356/2 by tapping lightly with a hammer.
