SUBFRAME, Securing: Notes
Special Tools And Workshop Equipment Required
- Torque Wrench 1332 40-200 Nm :VAG1332
- Engine and Gearbox Jack :VAS6931
- Locating Pins :T10096
- Rear Axle Support :T10552
- Rear Axle Support - Locating Bores :T10552/1
- Rear Axle Support - Support :T10552/2
TOOLS, PREPARING:
-- Loosen the bolts -arrows-.
-- Adjust the dimension -a-.
- Dimension -a- = 250 mm
-- Tighten the bolts again.
-- Remove the screw in the direction of -arrow-.
-- Turn the :T10552/2 -2- so that the profile is perpendicular to the direction of travel.
-- Adjust the dimension -b-.
- FWD vehicles -b- =270 mm.
- AWD vehicles -b- = 410 mm.
-- Tighten the plug -arrow- again to 30 Nm.
-- Loosen the left and right lower :T10552/1 -3-.
-- Adjust the dimension -c-.
- Dimension -c- = 47 mm.
-- Turn the left and right threaded sleeve from the :T10552/1 -3- until the dimension -d- is reached.
- FWD vehicles -d- =230 mm.
- AWD vehicles -d - = 215 mm.
-- Place the :T10552 -1- on the :VAS6931 -2-.
-- Tighten the plug in direction of -arrow- to 30 Nm.
-- Remove The Muffler. Refer to OVERVIEW - MUFFLER [CNSB, CNTC] / EXHAUST PIPES/MUFFLERS [CNSB, CNTC]OVERVIEW - MUFFLER [CRUA, DEJA] / EXHAUST PIPES/MUFFLERS [CRUA, DEJA] .
-- Remove the springs. Refer to SPRING, REMOVING AND INSTALLING .
Audi A3 Cabriolet:

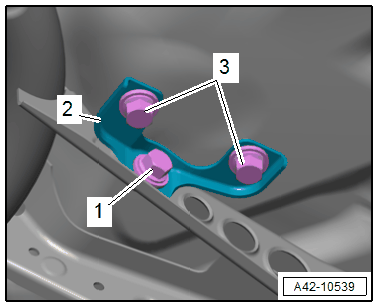

-- Loosen the bolts -3- for the subframe bracket -2- and remove bolt -1- to do this conterhold the nut.
-- Remove the bolts -1 through 4- and the diagonal brace.
FWD Vehicles:

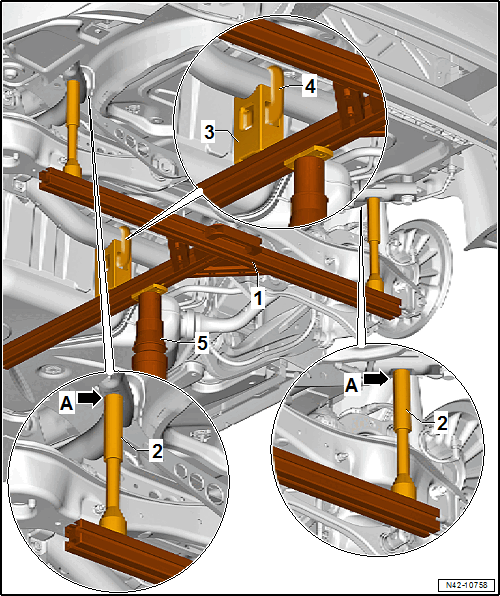

-- Position the :T10552 -1- with the :VAS6931 -5- under the subframe and lift.
-- Insert the :T10552/1 -2- in the holes on the subframe -arrows A-.
-- Secure the :T10552/2 -3- on the subframe using the tensioning strap -4-.
AWD Vehicles:
-- Position the :T10552 -1- with the :VAS6931 -5- under the subframe and lift.
-- Insert the :T10552/1 -2- in the holes on the subframe -arrows A-.
-- Secure the :T10552/2 -3- on the subframe using the tensioning strap -4-.
SUBFRAME VERSION 1:
- To secure the subframe the :T10096
must be installed at the left and right at the positions -1- one after the other.
There is a risk of damaging the threads on the subframe threaded connection to the body.
- The subframe bolts on the body must not be loosened or tightened with an impact wrench.
- Always install all bolts by hand for the first few turns.

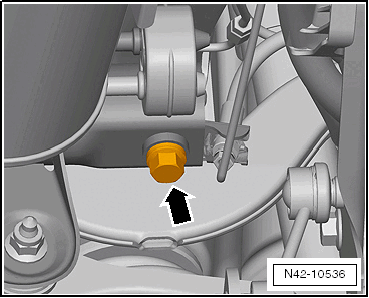

-- Remove a bolt from -1- for the subframe.

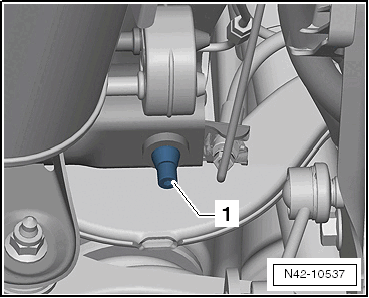

-- Install the locating pin -1- from the :T10096 and tighten to a maximum 20 Nm.
-- Repeat procedure for the second front bolt and the rear subframe bolts.
- The subframe position is now secured.
SUBFRAME VERSION 2:
There is a risk of damaging the threads on the subframe threaded connection to the body.
- The subframe bolts on the body must not be loosened or tightened with an impact wrench.
- Always install all bolts by hand for the first few turns.

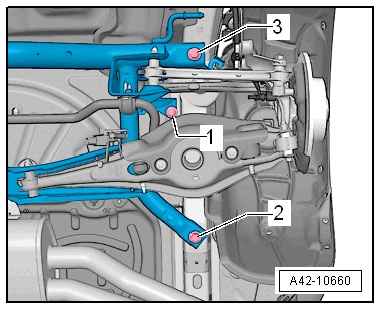

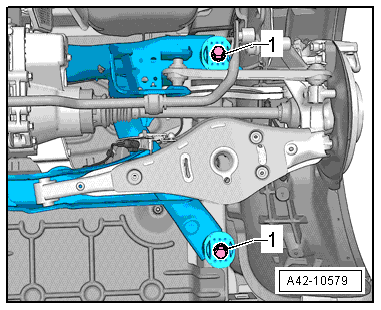

-- Remove the left and right bolts -1-.
- To secure the subframe the :T10096 must be installed at the left and right at the positions -2 and 3- one after the other.
-- Remove a bolt from -arrow- for the subframe.
-- Install the locating pin -1- from the :T10096 and tighten to a maximum 20 Nm.
-- Repeat procedure for the second front bolt and the rear subframe bolts.
- The subframe position is now secured.
Remove the :T10096 .
Removal is performed in the reverse order. Note The Following:
-- Only remove one locating pin diagonally and install a new locating pin in this location and tighten.
There is a risk of damaging the threads on the subframe threaded connection to the body.
- The subframe bolts on the body must not be loosened or tightened with an impact wrench.
- Always install all bolts by hand for the first few turns.
Risk of accident!
- If the vehicle will be driving on the streets, all bolts and nuts must be tightened properly according to the guidelines.
-- Install the springs. Refer to SPRING, REMOVING AND INSTALLING .
-- A Road Test Must Be Performed After Completing Repairs. If The Steering Wheel Is Crooked, The Wheels Must Be Aligned. Refer To VEHICLE ALIGNMENT .
