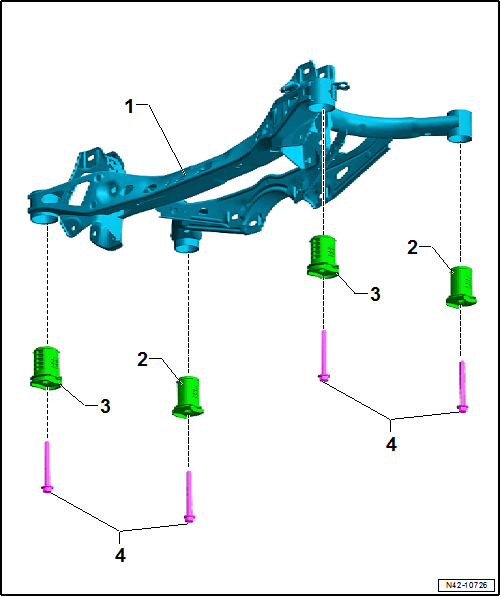

Overview - SUBFRAME, Multi-Link Suspension With Bonded Rubber Bushing Fwd Vehicles
WARNING: This page is about a different variant/trim than selected.
CAUTION:
There is a risk of damaging the subframe threaded connection threads on the body.
- The subframe bolts on the body must not be loosened or tightened with an impact wrench.
- Always install all bolts by hand for the first few turns.
- Subframe
- Subframe with attachments, removing and installing. Refer to REAR AXLE, REMOVING AND INSTALLING, MULTI-LINK SUSPENSION VEHICLES WITH FRONT WHEEL DRIVE .
- Rear Bonded Rubber Bushing
- Replacing. Refer to SUBFRAME FRONT BONDED RUBBER BUSHING, REPLACING (MULTI-LINK SUSPENSION) .
- Front Bonded Rubber Bushing
- Replacing. Refer to SUBFRAME FRONT BONDED RUBBER BUSHING, REPLACING (MULTI-LINK SUSPENSION) .
- Bolts
- 70 Nm + 180°
- Replace after removing
