Rear Axle, Removing And Installing, Torsion Beam Axle Vehicles With Front Wheel Drive: Removing

WARNING: This page is about a different variant/trim than selected.

-- Before beginning work measure the distance from the center of wheel to lower edge of wheelhouse. Refer to WHEEL BEARING IN CURB WEIGHT, LIFTING VEHICLES WITH COIL SPRING .

-- Release parking brake.

-- Remove the rear wheels. Refer to WHEEL, CHANGING AND MOUNTING / WHEELS AND TIRES .

-- If equipped, remove the underbody panels in the area of the axle beam. Refer to OVERVIEW - UNDERBODY TRIM PANELS / UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .

-- Disconnect the connector on the Right Rear ABS Wheel Speed Sensor -G44- /Left Rear ABS Wheel Speed Sensor -G46- and on the electromechanical parking brake right and left.

-- Unclip and free up the wire -1- from the bracket -2- on the axle beam on both sides -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right brake caliper and secure to the body with a wire. Refer to OVERVIEW - REAR BRAKES / REAR BRAKE CALIPER, REPLACING .

Vehicle with a Vehicle Inclination Sensor -G384-

-- Release and disconnect the connector -1- from the Left Rear Level Control System Sensor -G76-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the wire -2- from the clip -arrow-.

Continuation for All Vehicles

-- Unclip the brake line -1- on the right bracket from the clip -arrow-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

This will destroy the clip, so it will have to be replaced.

-- Remove the springs. Refer to SPRING, REMOVING AND INSTALLING, TORSION BEAM AXLE .

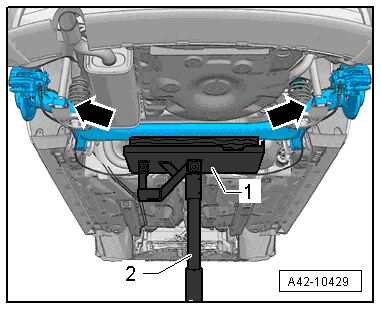

-- Place the :VAS6931 -2- with mounting plate -1- under the axle beam and secure using a tensioning strap.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip and free up the wiring harness -2- on the bracket -1- and on the axle beam.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of damaging the axle beam threaded connection threads on the body.

The axle beam bolts on the body must not be loosened or tightened with an impact wrench.
Always install all bolts by hand for the first few turns.

-- Mark the position of the bolts -arrows- on the bracket -1- on the right and left vehicle side.

-- Remove the bolts -arrows- for the right and left axle beam.

-- Remove the bolt -1- right and left on the shock absorber -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Lower the rear axle using :VAS6931 .
