Axle Beam Bonded Rubber Bushing, Replacing: Installing
WARNING: This page is about a different variant/trim than selected.

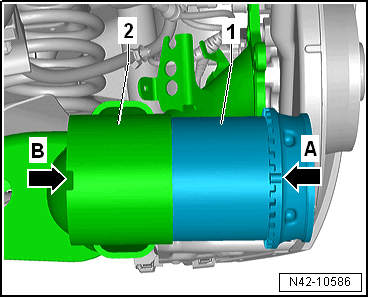

-- Pay attention to the installed location of the bonded rubber bushing -1- on the axle beam -2-.
The tab -arrow A- of the bonded rubber bushing -1- must point to the notch -arrow B- in the axle bearing -2-.

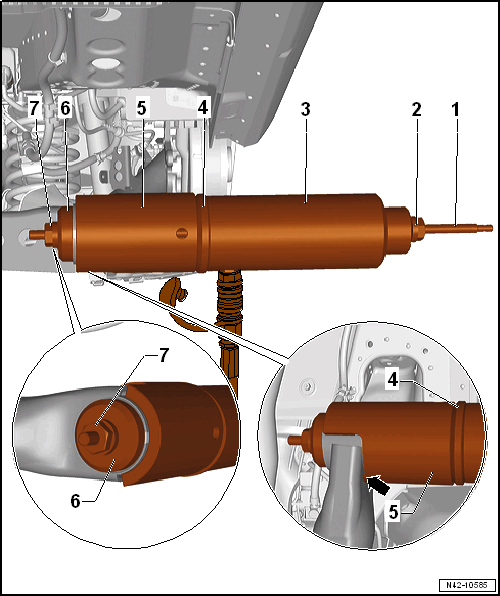

-- Mount the special tools as illustrated.
1 - :T10254/5
2 - :T10254/4
3 - :VAS6178 with :T10205/13
4 - :T10495/1
5 - Bonded Rubber Bushing
6 - :T10495/3
7 - :T10254/4
-- Before installing bonded rubber bushing, make sure that the mark on the bonded rubber bushing aligns with the mark on the axle beam.
-- Press in the bonded rubber mount to the stop.
-- Check the installed position of the bonded rubber bushing.
Install In Reverse Order Of Removal.
- If the control position was reprogrammed and if the vehicle has lane assist, then it will then be necessary to calibrate the driver assistance systems front camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
- On vehicles with level control system sensor, perform headlamp basic setting. Refer to HEADLAMP, ADJUSTING / HEADLAMPS, CALIBRATING .
- Vehicles with adaptive cruise control, calibrate the adaptive cruise control. Refer to ADAPTIVE CRUISE CONTROL (ACC), ADJUSTING .
-- Perform an axle alignment. Refer to VEHICLE ALIGNMENT .
