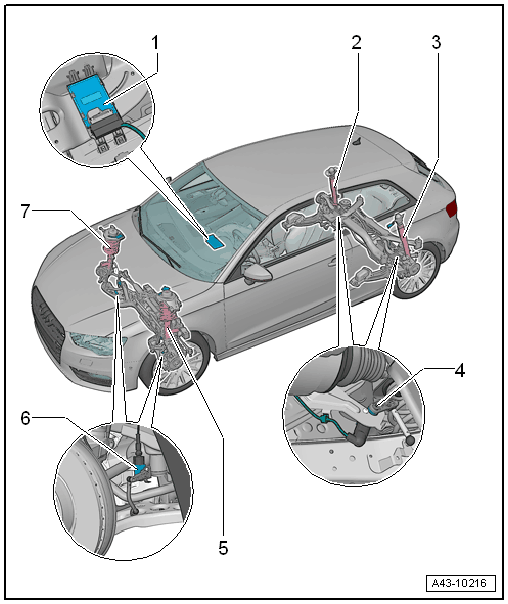

Overview - Electronic Damping
WARNING: This page is about a different variant/trim than selected.
- Electronic Damping Control Module -J250-
- Removing and installing. Refer to Electronic Damping Control Module -J250-, REMOVING AND INSTALLING .
- Component location: the Electronic Damping Control Module -J250- is installed under the right front seat
- If the Electronic Damping Control Module -J250- is being replaced, the "Replace control module" function must be performed using the Vehicle Diagnostic Tester
- If the control position was reprogrammed and if the vehicle has lane assist, then it will then be necessary to calibrate the driver assistance systems front camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
- Shock Absorber with Right Rear Damping Adjustment Valve -N339-
- Shock absorber, removing and installing. Refer to SHOCK ABSORBER, REMOVING AND INSTALLING .
- Shock absorber, servicing. Refer to SHOCK ABSORBER, SERVICING .
- Shock Absorber with Left Rear Damping Adjustment Valve -N338-
- Shock absorber, removing and installing. Refer to SHOCK ABSORBER, REMOVING AND INSTALLING .
- Shock absorber, servicing. Refer to SHOCK ABSORBER, SERVICING .
- Left Rear Level Control System Sensor -G76- /Right Rear Level Control System Sensor -G77-
- Removing and installing. Refer to REAR LEVEL CONTROL SYSTEM SENSOR -G76- / -G77-, REMOVING AND INSTALLING .
- Shock Absorber with Left Front Damping Adjustment Valve -N336-
- Suspension strut, removing and installing. Refer to SUSPENSION STRUT, REMOVING AND INSTALLING .
- To service the suspension strut. Refer to SUSPENSION STRUT, SERVICING .
- Left Front Level Control System Sensor -G78-
- Removing and installing. Refer to FRONT LEVEL CONTROL SYSTEM SENSOR -G78- / -G289-, REMOVING AND INSTALLING .
- Shock Absorber with Right Front Damping Adjustment Valve -N337-
- Suspension strut, removing and installing. Refer to SUSPENSION STRUT, REMOVING AND INSTALLING .
- To service the suspension strut. Refer to SUSPENSION STRUT, SERVICING .
