Left And Right Parking Brake Motor -V282- / -V283-, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal and note the following:

NOTE:

Clean the bolts and nuts before reusing.

Always replace self-locking nuts and bolts.

Always replace damaged nuts and bolts.

NOTE:

Replace the seal after removal.

The ring groove for the gasket and the parking brake motor contact surface must not be damaged.

-- Clean the parking brake motor ring groove and contact surface.

-- Lightly coat the new seal with Lithium Grease:G 052 150 A2 and install.

Courtesy of AUDI OF AMERICA, LLC

-- Push back the drive axle a little using a TORX^® insert E11 -item A- until the parking brake motor can be positioned correctly.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Do not remove the gasket when assembling the parking brake motor.

-- Rotate the parking brake motor until the bolt hole and threads are aligned.

The parking brake motor must be flush with the brake caliper. Under no circumstances may it be pulled against the brake caliper with bolts.

-- Tighten the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Connect the connector -1-.

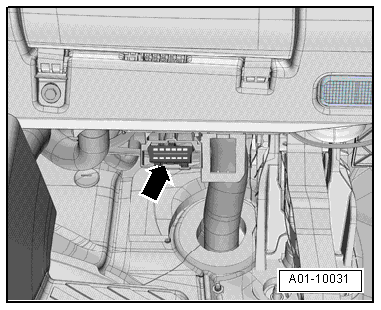

-- Connect the Vehicle Diagnostic Tester to the vehicle diagnostic connection -arrow- with the ignition switched off.

Courtesy of AUDI OF AMERICA, LLC

-- Switch the ignition on.

-- After entering the VIN, select Guided Functions .

-- Perform a basic setting:

Suspension/brake system
	01 OBD-capable systems
		03 ABS Control Module J104 integrated parking brake
			03 Electric parking brake functions
				03 46 Basic setting

-- Continue to follow the instructions in the Vehicle Diagnostic Tester display.

WARNING:

Risk of accident!

Make sure the brakes are working correctly before driving the vehicle for the first time.
