Overview - Electric Vacuum Pump
WARNING: This page is about a different variant/trim than selected.
NOTE:
Clean the bolts and nuts before reusing.
Always replace self-locking nuts and bolts.
Always replace damaged nuts and bolts.

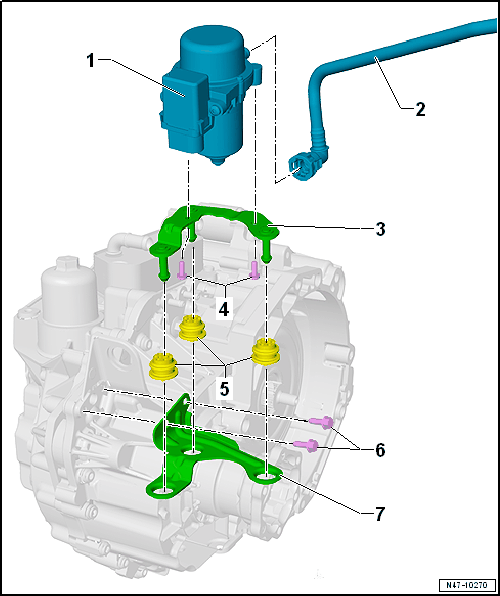

- Brake System Vacuum Pump -V192-
- Allocation. Refer to the Parts Information.
- Component location: in the engine compartment above the engine/transmission separating point.
- Do not disassemble
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Removing and Installing. Refer to ELECTRIC VACUUM PUMP, REMOVING AND INSTALLING .
- Vacuum Line
- With brake booster pressure sensor
- Allocation. Refer to the Parts Information.
- Bracket
- Bolt
- 8 Nm
- Quantity: 2
- Rubber Bushing
- Quantity: 3
- Do not push out of the bracket when installing
- Bolt
- 25 Nm
- Bracket
- Secured on the transmission
NOTE:
Clean the bolts and nuts before reusing.
Always replace self-locking nuts and bolts.
Always replace damaged nuts and bolts.
