Electric Vacuum Pump, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

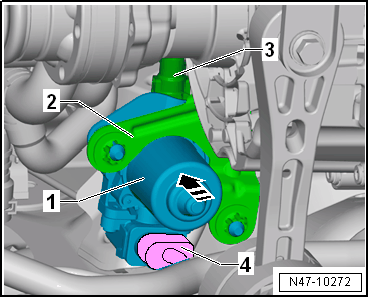

-- Remove the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
-- Disconnect the connector -4-.
-- Remove the vacuum line -3- from the electric vacuum pump -1-.
-- Press the electric vacuum pump upward -arrow- out of the bracket rubber buffers -2-.
