Brake System Pressure Reservoir -VX70-, Removing And Installing: Installing
Install In Reverse Order Of Removal and Note The Following:
Clean the bolts and nuts before reusing.
Always replace self-locking nuts and bolts.
Always replace damaged nuts and bolts.
-- Pre-bleed the new Brake System Pressure Reservoir -VX70- before installing. Refer to BRAKE SYSTEM PRESSURE RESERVOIR -VX70-, PRE-BLEEDING .
-- Insert the Brake System Pressure Reservoir -VX70- with the bracket into the engine compartment.

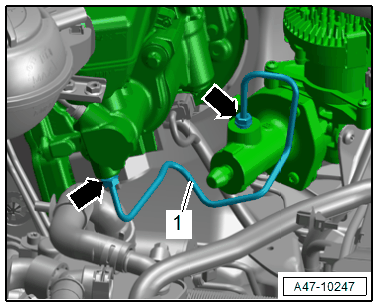

-- Position the brake line -1-, install the union bolts -arrows- by hand and tighten them.
-- Remove the Brake Pedal Actuator:VAG1869/2 .
-- Bleed the brake system. Refer to HYDRAULIC SYSTEM, BLEEDING .
-- Perform the electro-mechanical brake booster basic setting using the Vehicle Diagnostic Tester.
- 0023 - Brake Booster
- 0023 - Brake Booster Functions
- 0023 - Basic Setting
- 0023 - Brake System Pressure Reservoir VX70 Basic Setting
High Voltage Is Extremely Dangerous.
Electrocution can cause death or very serious personal injury.
- Have a "high-voltage technician" put the high-voltage system back into service.
-- Re-energize the high-voltage system. Refer to the appropriate service information .
Risk Of Accident!
- Make sure the brakes are working correctly before driving the vehicle for the first time.
