Overview - Relay Carrier/Instrument Panel Fuse Carrier/A-Pillar

WARNING: This page is about a different variant/trim than selected.

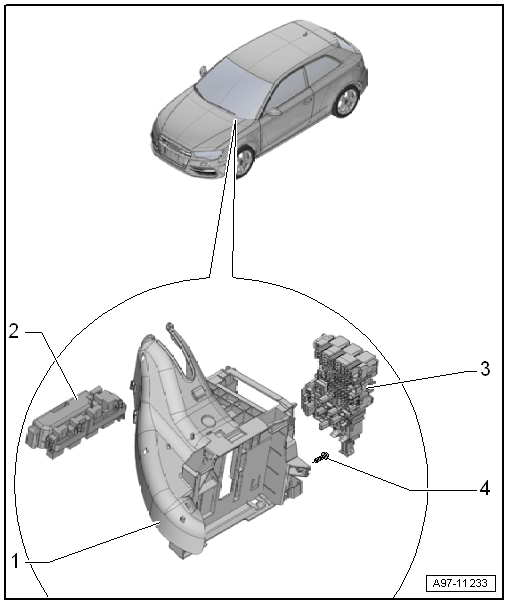

Fig 1: Exploded View Of Relay Carrier/Instrument Panel Fuse Carrier/A-Pillar

Courtesy of AUDI OF AMERICA, LLC

Bracket
- For vehicle electrical system control module
- Removing and installing. Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE BRACKET, REMOVING AND INSTALLING .
Bracket
- For the control module
- Removing and installing. Refer to CONTROL MODULE BRACKET, REMOVING AND INSTALLING .
Fuse Panel C -SC-
- Removing and installing. Refer to Fuse Panel C -SC- UNDER LEFT INSTRUMENT PANEL, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Quantity: 3
