Overview - Relay Carrier, Instrument Panel, E-Box, Luggage Compartment

WARNING: This page is about a different variant/trim than selected.

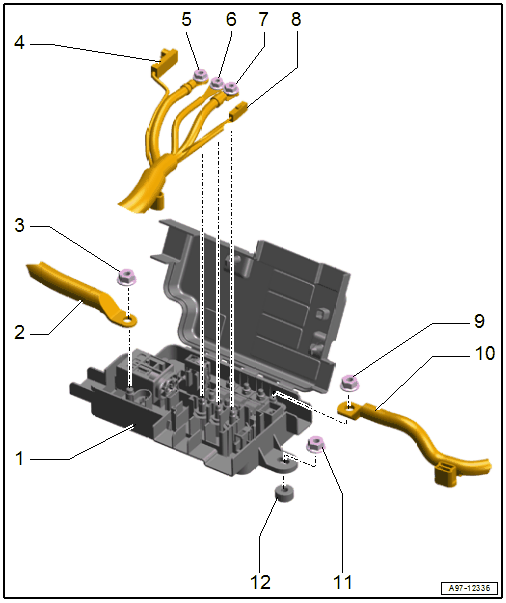

Fig 1: EXPLODED VIEW OF RELAY CARRIER, INSTRUMENT PANEL, E-BOX, LUGGAGE COMPARTMENT

Courtesy of AUDI OF AMERICA, LLC

E-Box
- Removing and Installing. Refer to E-BOX, REMOVING AND INSTALLING, E-BOX IN LUGGAGE COMPARTMENT .
Wire
- From the engine compartment
Nut
- 15 Nm
Connector
- To the battery interrupt igniter
Wire
- 6 Nm
Wire
- 6 Nm
Wire
- 6 Nm
Connector
- For the auxiliary fuse panel
Nut
- 15 Nm
Wire
- To the battery
Nut
- 9 Nm
- Quantity: 2
Spacer
- Quantity: 2
