Overview - Battery Fuse Panel

WARNING: This page is about a different variant/trim than selected.

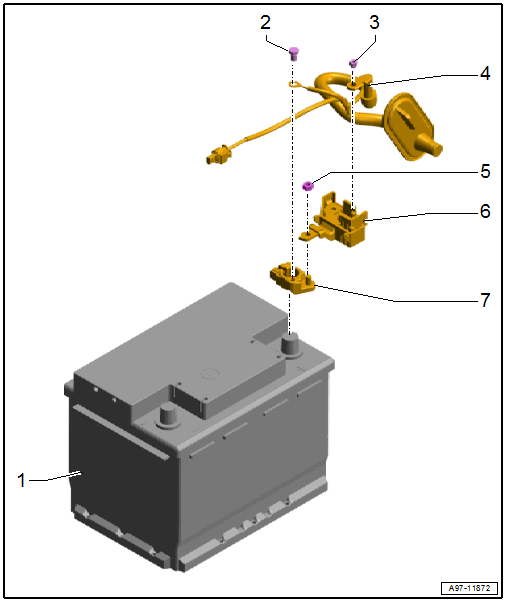

Fig 1: Exploded View Of Battery Fuse Panel
GWWA97-11872Courtesy of AUDI OF AMERICA, LLC
  1. Battery
  2. Bolt
    • 3.5 Nm
  3. Nut
    • 7.5 Nm
  4. Wiring Harness
  5. Nut
    • 6 Nm
  6. Battery Fuse Panel
  7. Positive Cable Battery Terminal
    • On the battery positive terminal
