Component Location Overview - Battery Fuse Panel, AUDI RS3 Sedan

Courtesy of AUDI OF AMERICA, LLC

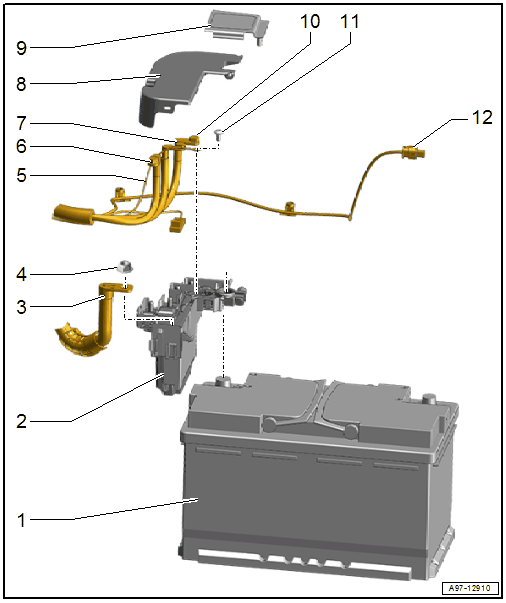

1. Battery
2. Main Fuse Panel
   • With Battery Interrupt Igniter -N253-. Cannot be replaced separately
   • Removing and Installing. Refer to MAIN FUSE PANEL ON BATTERY, REMOVING AND INSTALLING .
3. Line
   • Allocation. Refer to Wiring Diagram.
4. Nut
   • 18 Nm
5. Line
   • Allocation. Refer to Wiring Diagram.
6. Line
   • 7.5 Nm
   • Allocation. Refer to Wiring Diagram.
7. Line
   • 7.5 Nm
   • Allocation. Refer to Wiring Diagram.
8. Main Fuse Panel Door
9. Battery Positive Terminal Cover
10. Line
    • 7.5 Nm
    • Allocation. Refer to Wiring Diagram.
11. Bolt
    • 3.5 Nm
12. Line
    • For the Battery Monitoring Control Module -J367-
