Fuse Panel B -Sb- In E-Box, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
Location
-- Air filter housing in front of the battery: Remove the air filter housing. Refer to AIR FILTER [For engine(s) CRUA, DEJA] or AIR FILTER [For engine(s) CNSB, CNTC] .
-- Press the release buttons in direction of -arrow- and remove the cover -1- for the engine compartment E-box.
-- Open the tab -2- with a screwdriver, and remove the front cover -1- upward in direction of -arrow-.
-- When installing, identify the wires on the threaded connectors.

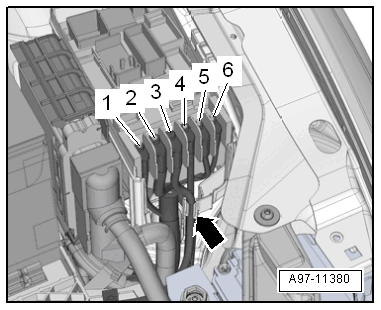

-- Remove the nuts -1, 2, 4, 5 and 6- and bolt -3- and free up the wire -arrow-.
-- Cut the lower cable ties on the wiring harness.
-- Release the catches -1, 2 and 4- -arrow- and remove the fuse panel B -3-.
