Overview - Connector Location

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

Connector Station, Right A-Pillar
- Removing and installing. Refer to RIGHT A-PILLAR CONNECTOR STATION, REMOVING AND INSTALLING .
Right Front Door Cut-Off Connector
- Disconnecting. Refer to LEFT DOOR CUT-OFF CONNECTOR, DISCONNECTING .
Left Front Door Cut-Off Connector
- Disconnecting. Refer to LEFT DOOR CUT-OFF CONNECTOR, DISCONNECTING .
Connector Station, Left A-Pillar
- Removing and installing. Refer to LEFT A-PILLAR CONNECTOR STATION, REMOVING AND INSTALLING .

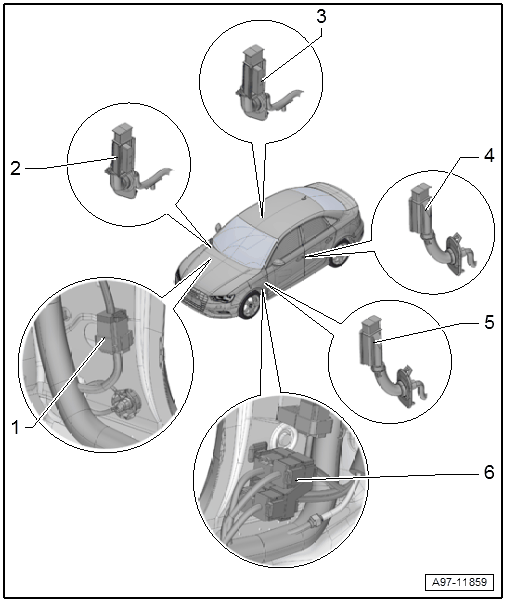

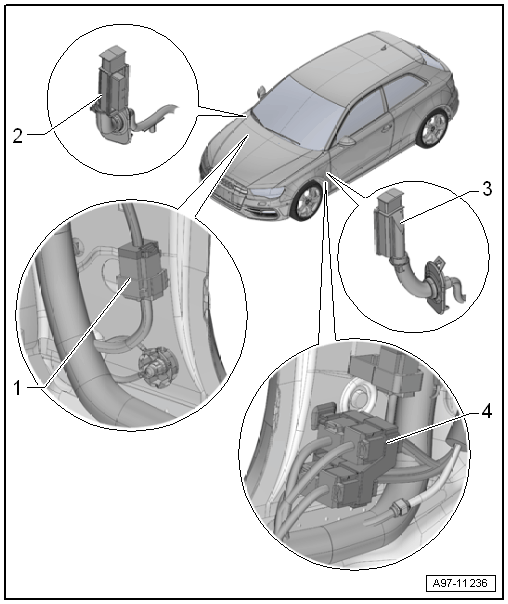

Fig 1: Exploded View Of Connector Location

Courtesy of AUDI OF AMERICA, LLC

Connector Station, Right A-Pillar
- Removing and installing. Refer to RIGHT A-PILLAR CONNECTOR STATION, REMOVING AND INSTALLING .
Right Front Door Cut-Off Connector
- Disconnecting. Refer to LEFT DOOR CUT-OFF CONNECTOR, DISCONNECTING .
Right Rear Door Cut-Off Connector
- Disconnecting. Refer to LEFT DOOR CUT-OFF CONNECTOR, DISCONNECTING .
Left Rear Door Cut-Off Connector
- Disconnecting. Refer to LEFT DOOR CUT-OFF CONNECTOR, DISCONNECTING .
Left Front Door Cut-Off Connector
- Disconnecting. Refer to LEFT DOOR CUT-OFF CONNECTOR, DISCONNECTING .
Connector Station, Left A-Pillar
- Removing and installing. Refer to LEFT A-PILLAR CONNECTOR STATION, REMOVING AND INSTALLING .
