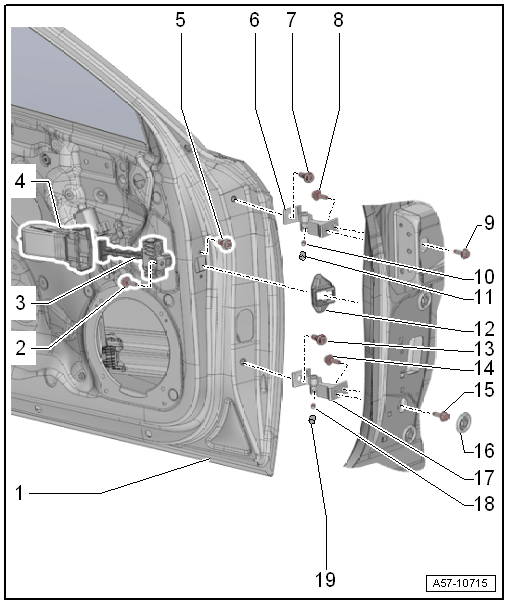

Overview - Door
WARNING: This page is about a different variant/trim than selected.
- Door
- Removing and installing. Refer to DOOR, REMOVING AND INSTALLING
- Bolt
- 33 Nm
- Door Arrester
- Removing and installing. Refer to DOOR ARRESTER, REMOVING AND INSTALLING
- Cap
- For the door arrester
- Note the installation direction
- Bolt
- 8 Nm
- Quantity: 2
- Door Hinge
- Bolt
- 45 Nm
- Bolt
- 32 Nm
- Bolt
- 32 Nm
- Stud Bolt
- 23 Nm
- Cap
- Place on the stud bolt
- Grommet
- For the door arrester
- Equipped on some models
- Bolt
- 45 Nm
- Bolt
- 32 Nm
- Bolt
- 32 Nm
- Cover
- Door Hinge
- Stud Bolt
- 23 Nm
- Cap
- Place on the stud bolt
