Lock Cylinder, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the cap -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -4-.

Courtesy of AUDI OF AMERICA, LLC

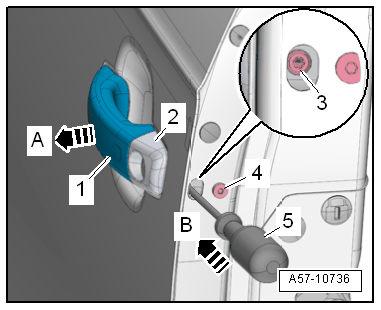

-- Remove the clamping screw -3- all the way using a screwdriver -5-

-- Push the lock cylinder retaining bracket inward -arrow B-.

-- Pull the door handle -1- slightly outward -arrow A- and remove the lock cylinder -2- from the mounting bracket.

NOTE:

If the lock cylinder cannot be removed, slide the ignition key into it and remove the lock cylinder with the key turned slightly.
