Vehicle Positioning System Interface Control Module -J843-, Removing And Installing, A3 And SPORTBACK: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the left luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

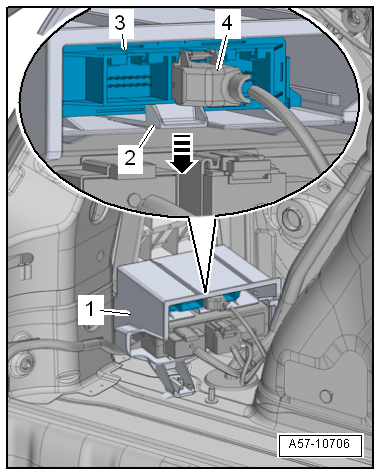

-- Disconnect the connector -4-.
-- Release -arrow- the retaining tab -2- and the interface control module -3- from the frame -1-.
