Windshield Wiper Motor -V-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
-- Remove the plenum chamber cover. Refer to Bulkhead .

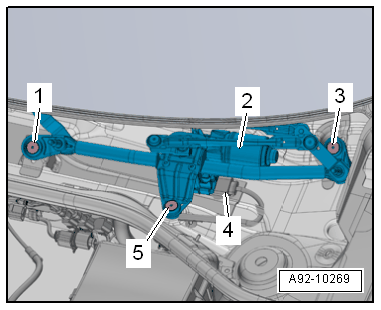

-- Remove the bolts -1, 3 and 5-.
-- Remove the wiper frame -2- with linkage and the wiper motor from the plenum chamber.
-- Disconnect the connector -4-.
