Windshield And Rear Window Washer Pump -V59-, Removing And Installing, AUDI RS3: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, AUDI RS3 .

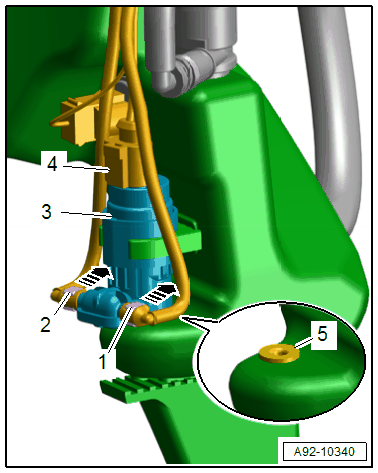

-- Disconnect the connector -4-.
-- Place a drip tray under the washer fluid reservoir.
-- Release the locking clamps -1 and 2- in direction of -arrows- and remove the washer fluid hose from the windshield washer pump -3-.
-- Remove the windshield washer pump upward from the washer fluid reservoir.
