Windshield Washer Fluid Reservoir Filler Neck, Removing And Installing, AUDI A3 Without Side Auxiliary Cooler: Removing
WARNING: This page is about a different variant/trim than selected.

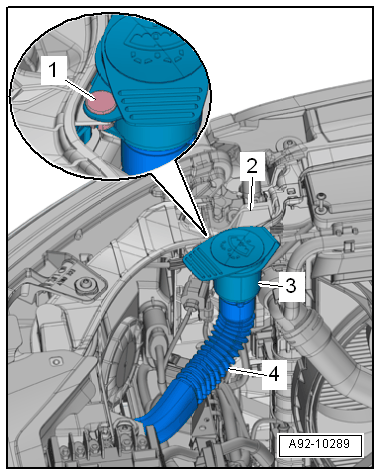

-- Remove the expanding clip -1-.
Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the filler neck -3- from the bracket on the lock carrier -2-.
-- Remove the filler neck from the filler tube -4-.
