Windshield Washer Fluid Reservoir Filler Neck, Removing And Installing, AUDI A3 Without Side Auxiliary Cooler: Installing
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal. Note the following:

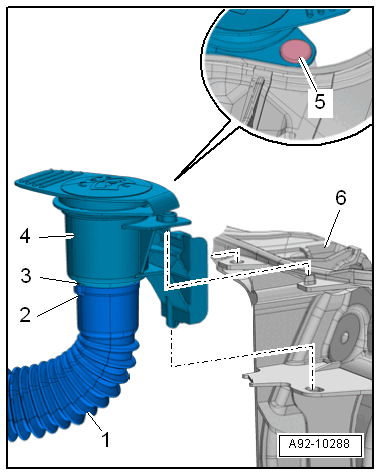

-- Insert the filler neck -4- all the way onto the filler tube -1-.
 Courtesy of AUDI OF AMERICA, LLC
|
- The tab -3- must fit into the opening -2- on the filler tube.
-- Install the filler neck onto the lock carrier -6- and secure with the expanding clip -5-.
