Windshield Washer Fluid Level Sensor, Removing And Installing, AUDI RS3: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, AUDI RS3 .

-- Place a drip tray under the washer fluid reservoir.

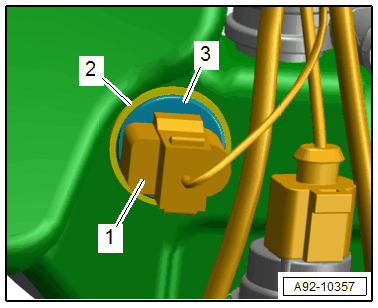

-- Disconnect the connector -1-.

GWWA92-10357Courtesy of AUDI OF AMERICA, LLC

-- Remove the windshield washer fluid level sensor -3- from the windshield washer fluid reservoir.
