Overview - Windshield Washer System, Without Side Auxiliary Cooler

WARNING: This page is about a different variant/trim than selected.

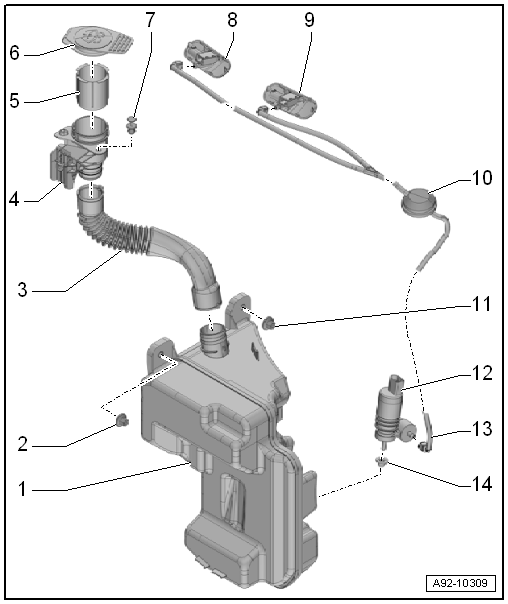

Fig 1: Exploded View Of Windshield Washer System, Without Side Auxiliary Cooler

Courtesy of AUDI OF AMERICA, LLC

Windshield Washer Fluid Reservoir
- With Windshield Washer Fluid Level Sensor -G33- Cannot be replaced separately if faulty.
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, AUDI A3 WITHOUT SIDE AUXILIARY COOLER .
Nut
- 8 Nm
Filler Tube
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, AUDI A3 WITHOUT SIDE AUXILIARY COOLER .
Filler Tube
- For the windshield washer fluid reservoir
- Removing and installing. Refer to WINDSHIELD WASHER FLUID RESERVOIR FILLER NECK, REMOVING AND INSTALLING, AUDI A3 WITHOUT SIDE AUXILIARY COOLER .
Screen
Cap
- For the filler neck
Expanding Clip
Right Spray Nozzle
- Vehicle equipment version with Right Washer Nozzle Heater -Z21-
- Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to appropriate service information.
Left Spray Nozzle
- Vehicle equipment version with Left Washer Nozzle Heater -Z20-
- Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to appropriate service information.
Grommet
- For the windshield washer fluid hose inside the hood
Nut
- 8 Nm
- Quantity: 2
Windshield And Rear Window Washer Pump -V59-
- Removing and installing. Refer to Windshield And Rear Window Washer Pump -V59-, REMOVING AND INSTALLING, AUDI A3 WITHOUT SIDE AUXILIARY COOLER .
Water Hose
- For the windshield washer system
Grommet
- Replace if damaged.
