Rear Window Wiper Motor -V12-, Removing And Installing, Vehicles Through 07/2013: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the windshield wiper arm. Refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .
-- Remove the rear lid lower trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

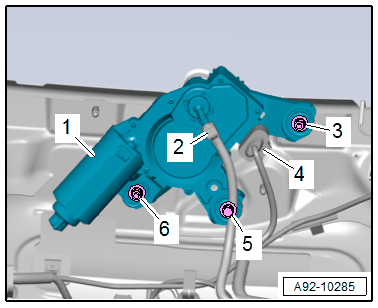

-- Disconnect the connector -4-.
-- Pull the clip and remove the water line -2- from the spray nozzle connecting tube.
-- Remove the nuts -3 and 6- and the bolt -5- and remove the Rear Window Wiper Motor -V12- -1-.
