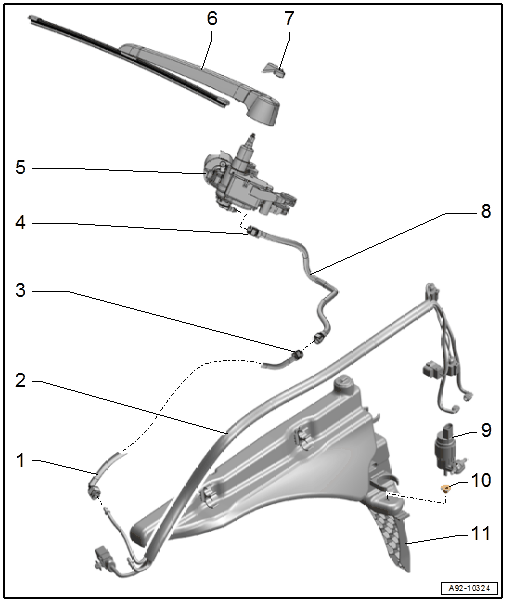

Overview - Rear Window Washer System, AUDI RS3
WARNING: This page is about a different variant/trim than selected.
- Washer Hose Connection
- Under the headlamp
- Wire Package
- With wiring harness and washer fluid hose for front and rear window washer system
- Washer Hose Connection
- Near the left rear D-pillar
- Washer Hose Connection
- On the rear window wiper motor
- Rear Window Wiper Motor -V12-
- Wiper Arm
- Spray Nozzle
- Removing and Installing. Refer to SPRAY NOZZLE, REMOVING AND INSTALLING .
- Adjusting. Refer to appropriate service information.
- Washer Fluid Hose
- for the rear window washer system
- Windshield And Rear Window Washer Pump -V59-
- Removing and Installing. Refer to Windshield And Rear Window Washer Pump -V59-, REMOVING AND INSTALLING, AUDI A3 WITHOUT SIDE AUXILIARY COOLER .
- Grommet
- Replace if damaged.
- Washer Fluid Reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, AUDI RS3 .
