Spray Nozzles, Removing And Installing, Without Side Auxiliary Cooler: Removing

-- Remove the left front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Place a drip tray under the windshield washer fluid reservoir.

-- Remove the cover for the headlamp washer system spray nozzle. Refer to FRONT BUMPER .

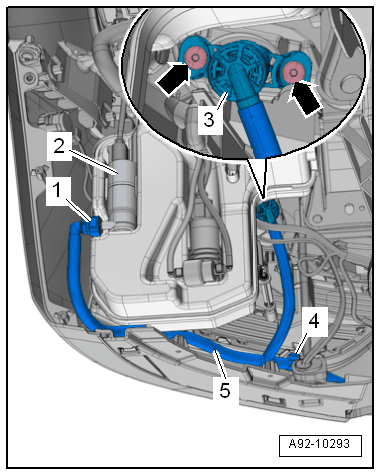

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the washer fluid hose -5- at the brackets -4- on the bumper cover and remove it with the spray nozzles -3-.

Vehicles through MY 2016

-- Clamp off the windshield washer fluid hose -1- with the :3094  .

Courtesy of AUDI OF AMERICA, LLC

-- Carefully warm the washer fluid hose -1- using the :VAG1416  and remove it from the spray nozzle -2- in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

Vehicles from MY 2017

Courtesy of AUDI OF AMERICA, LLC

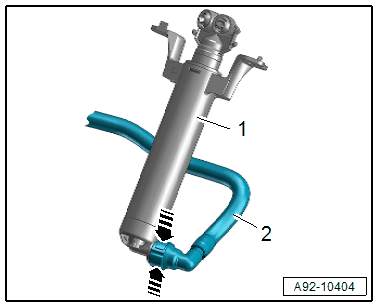

-- Place the drip tray under the washer nozzle -1-.

-- Remove the washer fluid hose -2- by pressing the release buttons in the direction of -arrows-.

-- Seal off the hose coupling with clean plugs from the :VAS6122  .
