Spray Nozzles, Removing And Installing, With Side Auxiliary Cooler: Removing
WARNING: This page is about a different variant/trim than selected.
-- Left and right: Remove the auxiliary cooler and set it aside with the coolant hoses attached. Refer to AUXILIARY RADIATOR, REMOVING AND INSTALLING .
-- Right: Loosen the lower front wheel housing liner. Refer to WHEEL HOUSING LINER .
-- Remove the cover for the headlamp washer system spray nozzle. Refer to OVERVIEW - BUMPER COVER .

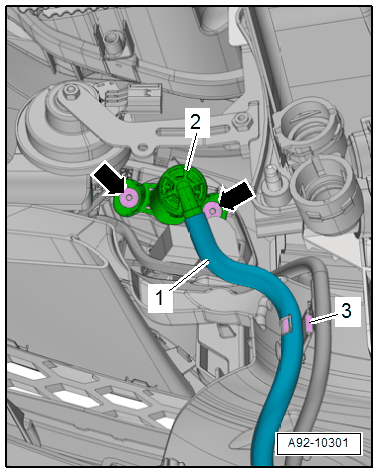

-- Remove the bolts -arrows-.
-- Free up the washer fluid hose -1- at the bracket -3-.
-- Remove the spray nozzle -2-.
-- Clamp off the windshield washer fluid hose -1- with the :3094 .
-- Place a drip tray under the windshield washer fluid reservoir.

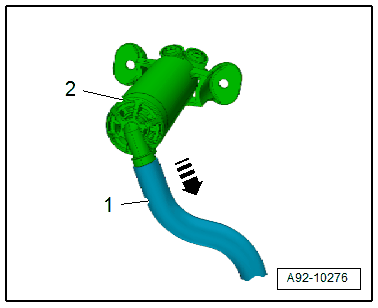

-- Carefully warm the washer fluid hose -1- using the :VAG1416 and remove it from the spray nozzle -2- -arrow-.
