Headlamp Washer Pump -V11-, Removing And Installing, AUDI RS3: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, AUDI RS3 .

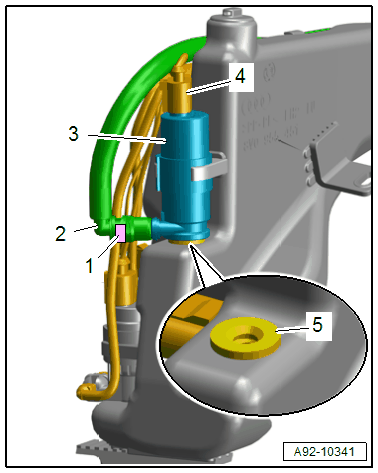

-- Disconnect the connector -4-.
-- Place a drip tray under the washer fluid reservoir.
-- Press the release button -1- and remove the washer fluid hose -2- from the Headlamp Washer Pump -V11- -item 3-.
-- Remove the headlamp washer pump upward and out of the washer fluid reservoir.
