Headlamp Washer Pump -V11-, Removing And Installing, AUDI A3/S3 With Side Auxiliary Cooler: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the windshield washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, AUDI A3/S3 WITH SIDE AUXILIARY COOLER .

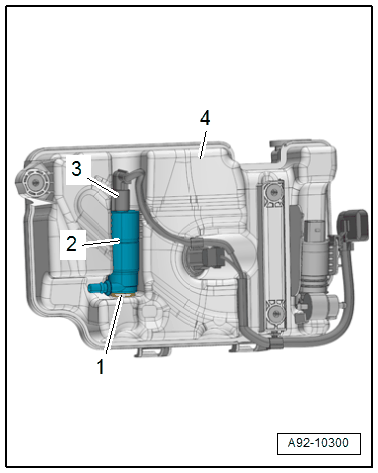

-- Disconnect the connector -3-.
-- Remove the headlamp washer pump -2- upward from the windshield washer fluid reservoir -4-.
