Headlamp Washer Pump -V11-, Removing And Installing, AUDI A3 Without Side Auxiliary Cooler: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the left front wheel housing liner. Refer to WHEEL HOUSING LINER .

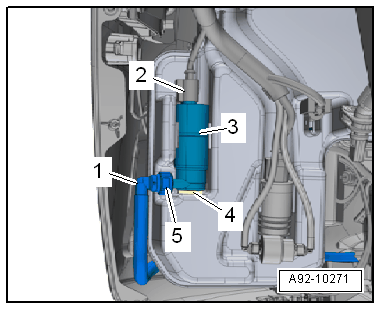

-- Disconnect the connector -2-.
-- Place a drip tray under the windshield washer fluid reservoir.
-- Press the release button -5- and remove the washer fluid hose -1- from the Headlamp Washer Pump -V11- -3-.
-- Remove the headlamp washer pump upward and out of the washer fluid reservoir.
