Side, Length And Height Adjustment At Hinge, A3 And SPORTBACK:
WARNING: This page is about a different variant/trim than selected.
-- The roof spoiler is removed. Refer to SPOILER, REMOVING AND INSTALLING .

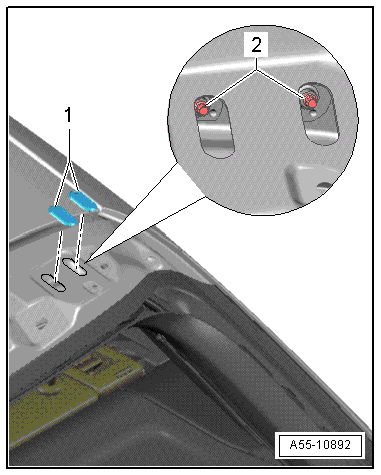

-- Pry out the seal -1-.
- To ensure that it is water tight, after installing the seal coat it completely with Adhesive/Sealant:D 511 500 A2 .
-- Loosen the bolts on the lid -2- from the inside at the hex fitting.
-- Close the rear lid and align it with the body contour.
-- Using an E5 outer TORX® socket, fasten the bolts -2- to the lid retainer by turning to the left a maximum of 7 Nm.
-- Open the rear lid and tighten the bolts on the hex fitting -Item 2- OVERVIEW - REAR LID, A3 AND SPORTBACK - List Item:Bolt.
-- Install the rear spoiler.
