Length Adjustment At Hinge, Sedan:
WARNING: This page is about a different variant/trim than selected.

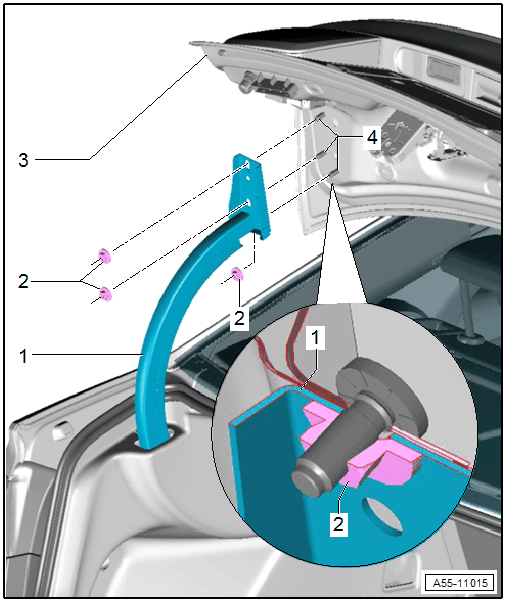

- Hinge
- Removing. Refer to HINGES, REMOVING AND INSTALLING, SEDAN .
- Nut
- Tightening specification -Item 2- OVERVIEW - REAR LID, SEDAN - List Item:Nut
- Rear Lid
- Adjusting
-- Calculate how much the lid must be adjusted lengthwise.
-- Loosen the nuts -2- on the threaded pins -4-.
-- Slide the lid on the hinges around the corresponding area.
-- Tighten the nuts to the tightening specification -Item 2- OVERVIEW - REAR LID, SEDAN - List Item:Nut.
- Adjusting
- Threaded Pins
