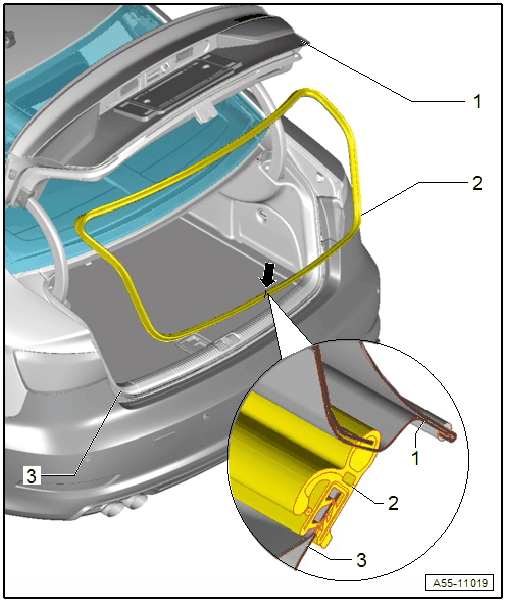

Rear Lid Seal, Removing And Installing, Sedan
WARNING: This page is about a different variant/trim than selected.
- Rear Lid
- Rear Lid Seal
-- Remove to remove the seal from the body flange.
-- When installing place the seal over the rear lid on the body.
-- Align the seal with the butt joint -arrow- to the below vehicle center.
-- Beginning at the butt joint, press the seal all around onto the body flange.
-- Install the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Body Flange
