Rear Lid Seal, Removing And Installing, A3 And SPORTBACK
WARNING: This page is about a different variant/trim than selected.

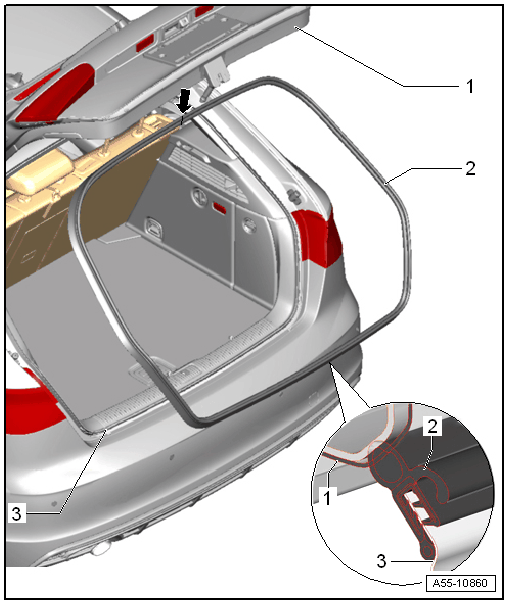

- Rear Lid
- Rear Lid Seal
-- Remove to remove the seal from the body flange.
-- Before installing loosen the bumper cover and remove slightly from behind. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Align the seal with the butt joint -arrow- to the above vehicle center.
-- Beginning at the butt joint, press the seal all around onto the body flange.
-- Install the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Body Flange
